F54

Automatic film mapping

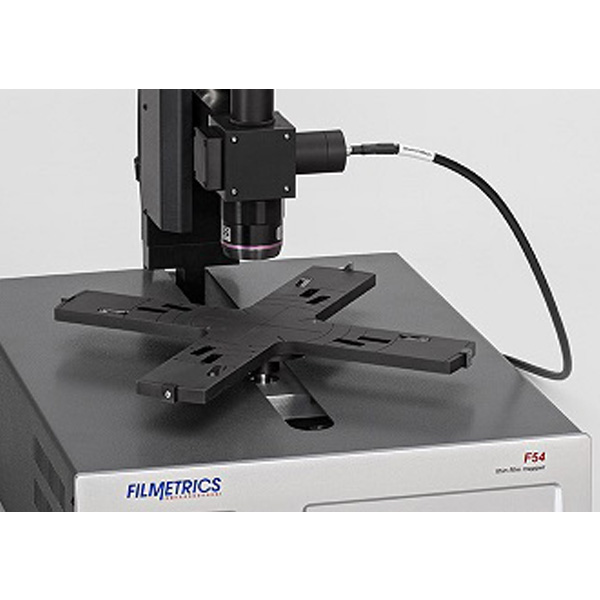

The Filmetrics F54 series is capable of rapidly measuring film thickness at a rate of two points per second, up to 450 mm in diameter, using an electric R-Theta platform that automatically moves to the selected measuring point

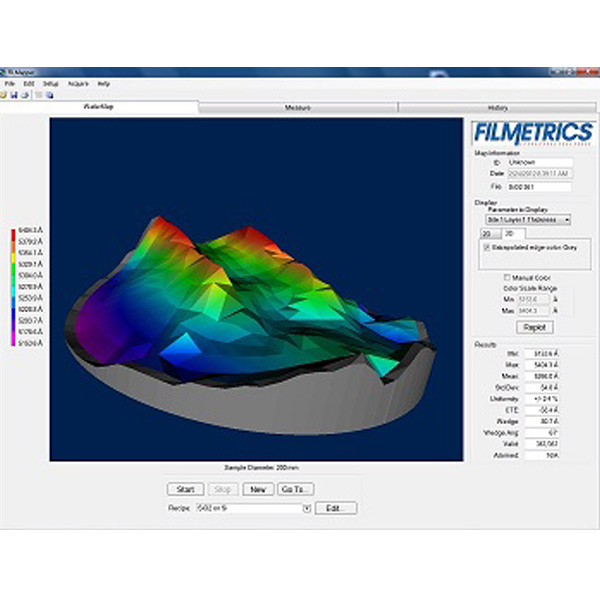

Choose from dozens of built-in concentric circle, rectangular, or linear pattern patterns, or build your own unlimited number of measuring points. Anyone with basic computer skills can create their own recipe in minutes

F54 Automated Film mapping simply connects the device to a USB port on your Windows™ computer and can be easily set up in minutes

Different models are mainly distinguished by thickness and wavelength range. Usually thinner films require shorter wavelength measurements (such as F54-UV) to measure thinner films, while longer wavelengths can be used to measure thicker, coarser, or more opaque films

What is included:

• Integrated spectrometer/light source device
  MA-Cmount mounts the adapter
  Optical fiber connector
  BK7 Reference material
  TS-Focus-SiO2-4-10000 thickness standard
  4", 6" and 200mm reference wafers
  Vacuum pump
  Spare lamp

Model and specification
